NP12V-7Ah - 200Ah UPS battery
- BrandNET OEM
- TypeGM2V-100Ah - 3000Ah
VRLA Maintenance-free battery(AGM) NP(12V)/GM(2V)
NET brand SLA Battery for UPS internal or external configuration.
Battery solution advantage
Maintenance-free(less maintenance)
Good quality(Sufficient capacity/Weight etc) will contribute to ups reliability and stability. NET brand battery designed and manufactured by professional manufacturer. Designed with comprehensive protection & function, EOD/End of Discharge alarm avoid battery over-discharged, and NET power ups system built-in with intelligent battery charge control(ABM tech) avoid over-charge damage. Average-charge & float-charge transfer smoothly. Intelligent or manual setting charge current on remaining capacity.
Sealing design
Electrolyte and conductive boards sealed in an ABS case, no need to add water like some truck battery.
Long lifespan
Achieve more long 300 cycles full-discharge(till EOD/End of Discharge), Specifically, low to middle rate batteries (7-33Ah): 3-years design lifespan, High rate batteries (38-200Ah): 5 years lifespan.
Self discharge
Less than 2% per month.
Battery discharge consistency
Each battery’s cell voltage differs little after discharged with several blocks be connected in series.

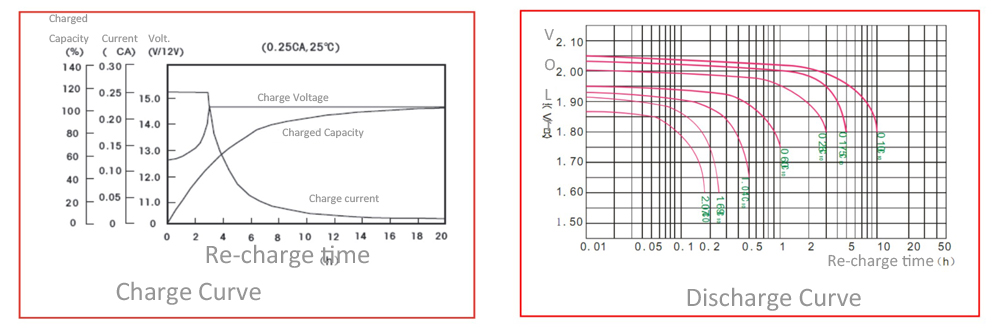

Battery charge & discharge curves
Specification
|
NET Power Model |
Rated voltage(V) |
Rated capacity(Ah) |
Length(mm) |
Width(mm) |
Height(mm) |
Total height |
Weight(kg) |
|
NP12-07 |
12 |
7 |
151 |
65 |
94 |
98 |
2.15 |
|
NP12-12 |
12 |
12 |
151 |
99 |
94 |
100 |
3.60 |
|
NP12-24 |
12 |
24 |
165 |
125 |
176 |
176 |
7.60 |
|
NP12-33 |
12 |
33 |
166 |
130 |
158 |
163 |
8.80 |
|
NP12-38 |
12 |
38 |
223 |
165 |
165 |
170 |
12.0 |
|
NP12-50 |
12 |
50 |
257 |
133 |
201 |
201 |
16.1 |
|

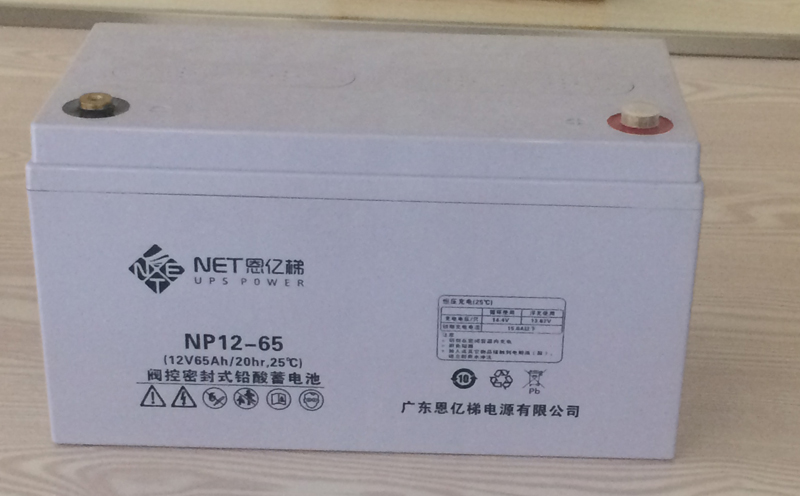

NP12-65 |
12 |
65 |
314 |
166 |
169 |
174 |
20.5 |
|
NP12-80 |
12 |
80 |
350 |
167 |
179 |
179 |
23.2 |
|
NP12-100 |
12 |
100 |
329 |
172 |
215.5 |
223 |
29.8 |
|
NP12-120 |
12 |
120 |
407 |
173 |
222 |
231 |
36.0 |
|
NP12-150 |
12 |
150 |
483 |
171 |
218 |
223 |
42.5 |
|
NP12-200 |
12 |
200 |
522 |
234 |
218 |
223 |
59.0 |
|
GM2-100 |
2 |
100 |
172.5 |
65.0 |
205.0 |
213.0 |
5.30 |
|
GM2-200 |
2 |
200 |
98.5 |
174.0 |
334 |
357.5 |
13.0 |
|
GM2-300 |
2 |
300 |
141.0 |
178.0 |
348.5 |
357.5 |
19.0 |
|
GM2-400 |
2 |
400 |
175 |
174 |
348.5 |
357.5 |
24.0 |
|
GM2-500 |
2 |
500 |
213.5 |
174.0 |
348.5 |
357.5 |
30.0 |
|
GM2-600 |
2 |
600 |
350 |
173 |
338 |
347 |
35.5 |
|
GM2-800 |
2 |
800 |
350 |
173 |
338 |
347 |
49.0 |
|
GM2-1000 |
2 |
1000 |
430 |
173 |
338 |
347 |
59.5 |
|
GM2-1200 |
2 |
1200 |
510 |
175 |
338 |
347 |
70.5 |
|
GM2-1500 |
2 |
1500 |
318 |
341 |
341 |
351 |
118 |
|
GM2-3000 |
2 |
2000 |
629 |
346 |
341 |
351 |
174 |
