Introduction

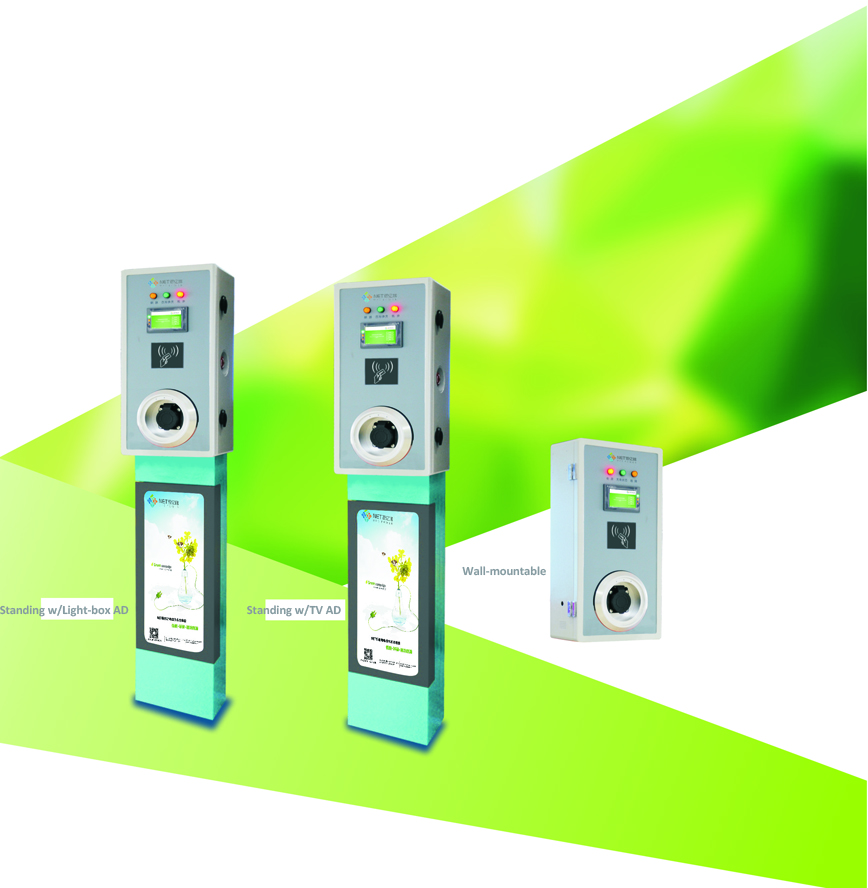

NET BRAND AC CHARGER TERMINAL(WALL-MOUNTING)

SYSTEM ADVANTAGE

Customerized design for personal passenger vehicle assoted an off-board charger.

AC charger system not very complicated so compact in foot-print, widely applied in EV charge station,
large parking lots.

Very simple to operate for daily vehicle charging.

Inbuilt ARM micro-process controls charging very reliably, fast in calculation and abundant software resource.

4 inch colorful TFT touch screen of good humanity, operation display very easy and convenient.

Comprehensive protection functions, such as short circuit, over-current, over-voltage and under-voltage.

Charge pile runs in high efficiency(high input power factor), low THDi, no need any extra reactive power compensation,

no need any harmonic suppression device.

Electricity feecharged, card-read: either charge on electricity fee or electricity capacity/KWH, auto full-charged
etc.

Owner may set different electricity fee, busy-time fee differs from free-time, max 8 electricity fee settable.

TECHNICAL SPECIFICATION
AC charger model Rating capacity(kVA)	NET-3.5kW-AC	NET-7kW-AC	NET-14kW-AC	NET-21kW-AC
	3.5	7	14	21
	AC INPUT
Nominal AC volt (Vac)	220Vac (1Ph+N(GND)			380Vac (3Ph+N(GND)
Rating current (A)	16	32	63	32
Input frequency	45 - 65Hz
Noise(1m)	< 55 dB
	PROTECTION
Output short-circuit	charger will not recover automatically, manual re-start it.
Output over-voltage	Cut-off output, charger will recover automatically
Output under-voltage	Cut-off output, charger will recover automatically
Current leakage	charger can not recover automatically, manual re-start it
	CHARGING CONFIGURATION & STANDARD
Output sockets(Pieces)	1
Charge cable length(m)	/
Communication protocol standard
Charge standard	GB/T 33001 - 2010, NB/T33008.1 - 2013
	CONDITON
Work temperature	_20 ～ 50 ℃
Storage temperature	_40 ～ 80 ℃
Relative humidity	< 95% non condense
Atmosphere pressure(kpa)	70 ～ 106
	PHYSICAL
Size(WDH)mm	3202061530(Standing)
	320206620(Wall-mounting)
N.Weight(kg)	< 50 kg
IP-Classs	IP-54
