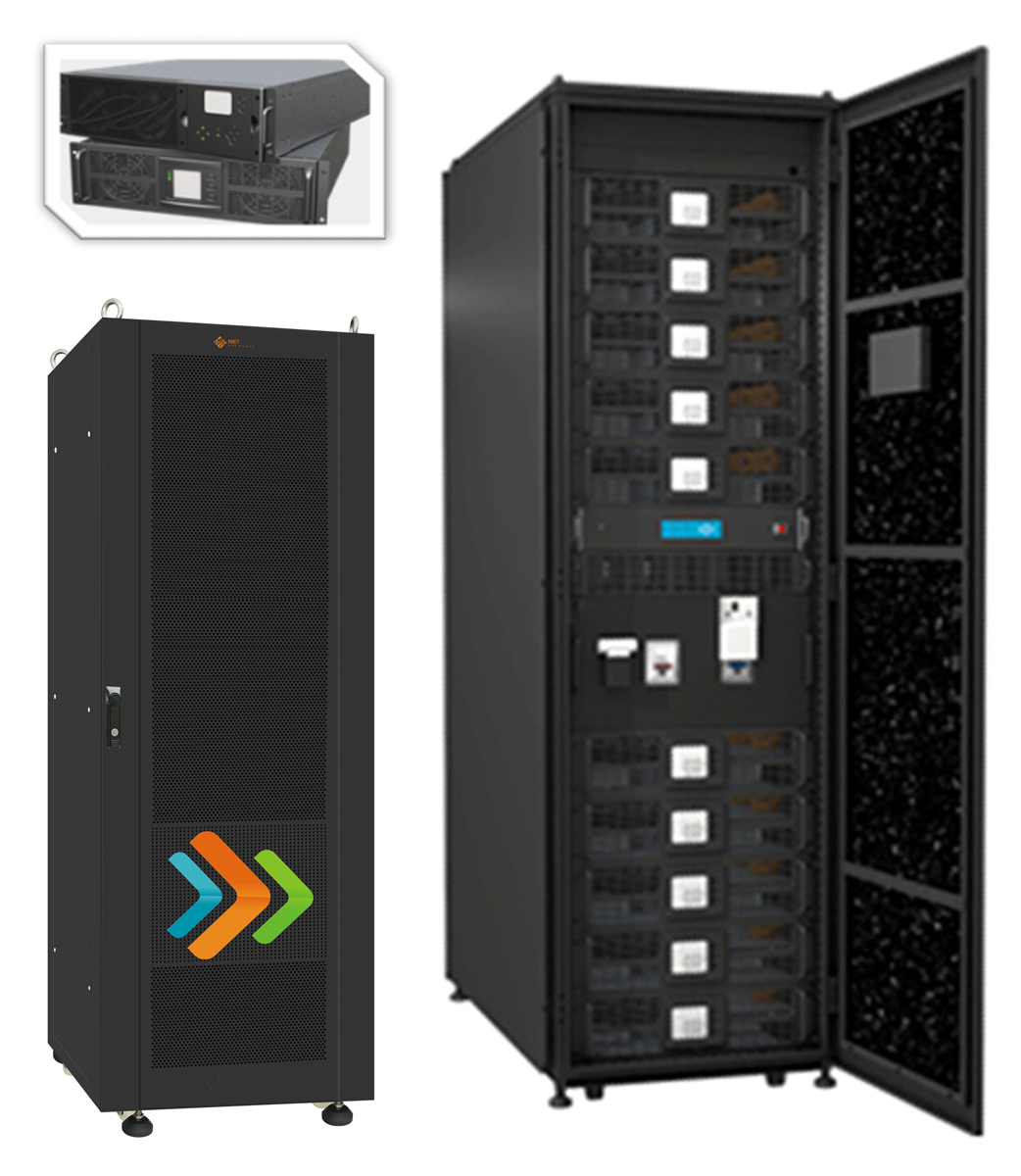

Modular Ups SPW30-300kVA built-in distributed bypass



System Advantage

High power density design

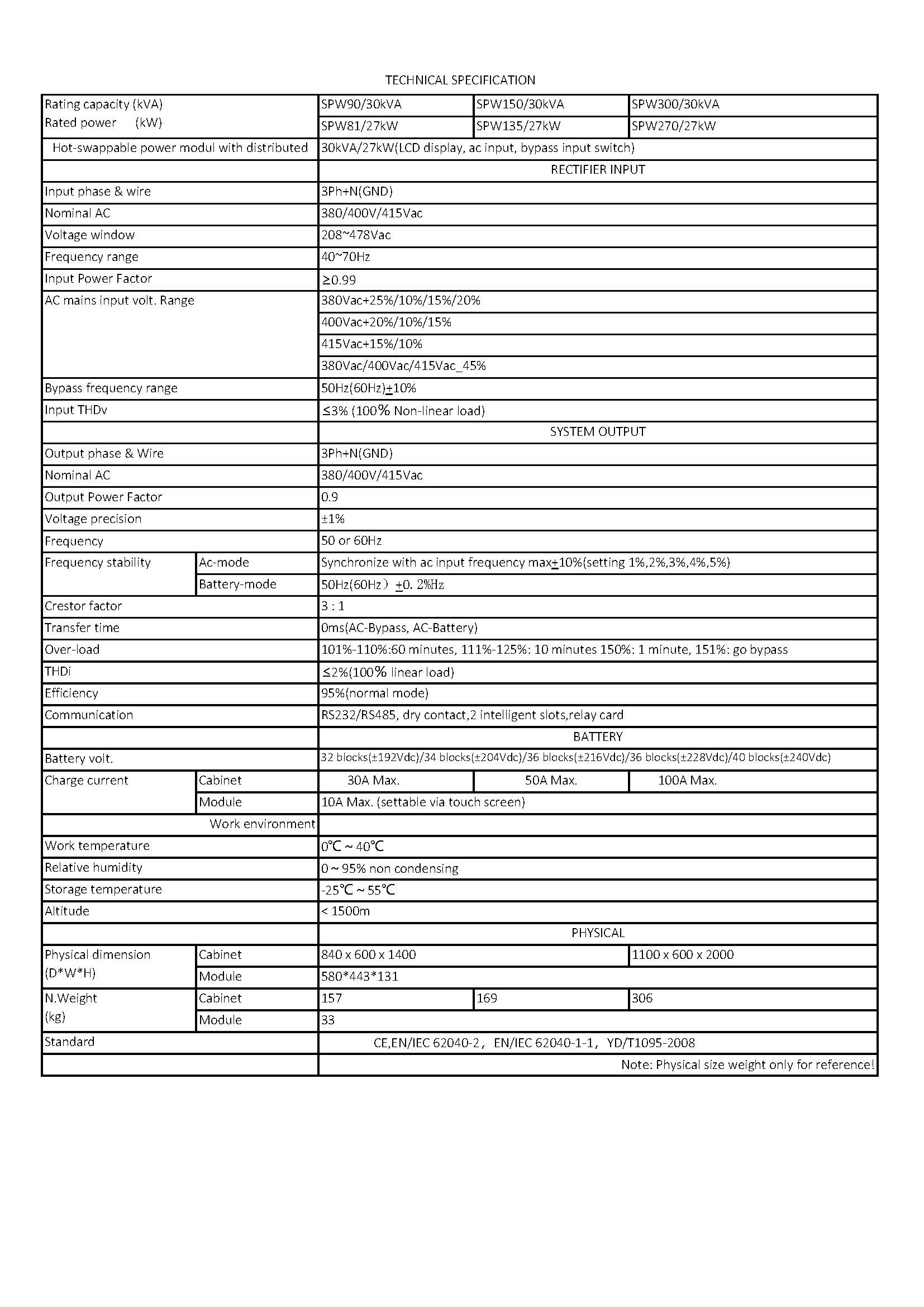

SPW90/30 SPW150/30 SPW300/30(kVA)

Redundancy design enhances power availability and extends MTBF to 100,000 hours.

Flexible N+X parallel redundant system max 1200kVA(4*300kVA) via optimized distribution confluence cabinet technology.

Balance 3Ph unbalanced load.

Digital control tech/DSP

System runs reliably and stably in self-protection and self-diagnosis than traditional analog circuit design.

19 –Inch standard cabinet

Good out-appearance meet modern IT infracture trends, more compact footprint, saving installation space.

Hot-swappable design

Very convenient for online expansion and maintenance, minimizes MTBR(3-5 mins). System maintenance needs transfer to maintenance bypass via inbuilt maintenance bypass switch. System output switch also built-in.

Distributed bypass design

Power module unit with individual bypass(rectifier input and bypass input switch built-in), when system transfers to bypass, all STS share total load equally,

logic control technology averages output current precisely.

Common battery

Parallel modules/Systems connects to an external battery cubicle, flexible battery configuration: 32-40 blocks. ABM technology, Battery test module option

7 inch colorful TFT touch screen HMI & LCD display interface

System operation control display via touch screen is convenient to read, administrate and set on ups, power grid statuses, operation parameter of ups and

battery string. Module unit design with LCD displaying current module work statuses and relevant parameters clearly.

Hot-swappable monitor module

Comprehensive communication slots: RS232, RS485(Modbus), Dry contact, EPO and REPO button. Optional SNMP, Network management card

(detect work temperature, humidity and altitude value), Relay card and battery test module. Monitor module hot-swappable design allow system run normally when draw-out.

Wide applied to computer room, telecom even industry automation.
