Product Description



AC vehicle charging is used to provide AC power for electric vehicles with features of simple system, less occupied areas, and easy installation. It can be installed in the electric vehicle charging stations, public parking, shopping malls and other indoor and outdoor areas as an important electric vehicle charging facility.



1. High-performance ARM chip. High stability and operational control capability, and powerful system resources guarantee stability and reliability.

2. Interactive interface with high-performance ARM chip and 4-inch true color touch screen enable user-friendly design and simple operation.

3. Protection against short circuit, over current, leakage, overvoltage and under voltage.

4. High efficiency, high efficiency factor, low input harmonic current, no need of additional reactive power compensation and harmonic suppression equipment.

5. Electricity metering and reader functions: the product supports different charge modes, e.g. charging according to the amount of money or electric quantity, and automatically fully charging and so on. It supports multi-rate settings. Different rates can be set at different periods. Eight rates totally are allowed.



Specifications



Model	NET-3.5KWA	NET-7KWA	NET-14KWA	NET-21KWA
Input
Voltage(V)	220V(single-phase five wire)			280(three-phase five wire)
Current(A)	16	32	63	32
Capacity(KVA)	3.5	7	14	21
Frequency(HZ)	45~65
Noise level	<55
Protection
Short-circuit protection	No self-recovery(manually restore)
Overvoltage protection	No output after protection, self-recovery
Undervoltage protection	No output after protection, self-recovery
Leakage protection	No self-recovery(manually restore)
Charging configuration and implementation standards
Number of charging plug	1
Cable length	/
Communication protocols and implementation standards	/
Implementation standards of charger	NB/T 33001-2010, NB/T 33008.1-2013
Environmental parameters
Operating temperature	-20~+50℃
Storage temperature	-40~+80℃
Relative humidity	≤95%
Atmospheric pressure	70~106
Others

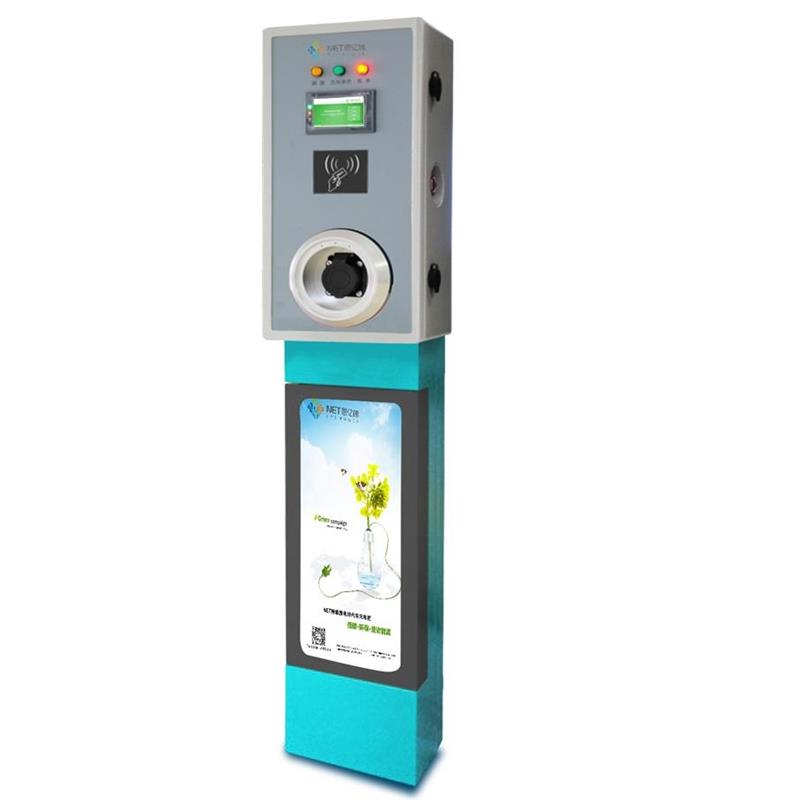

Dimension(D*W*H)mm(light box / TV advertising type)	1530*320*206

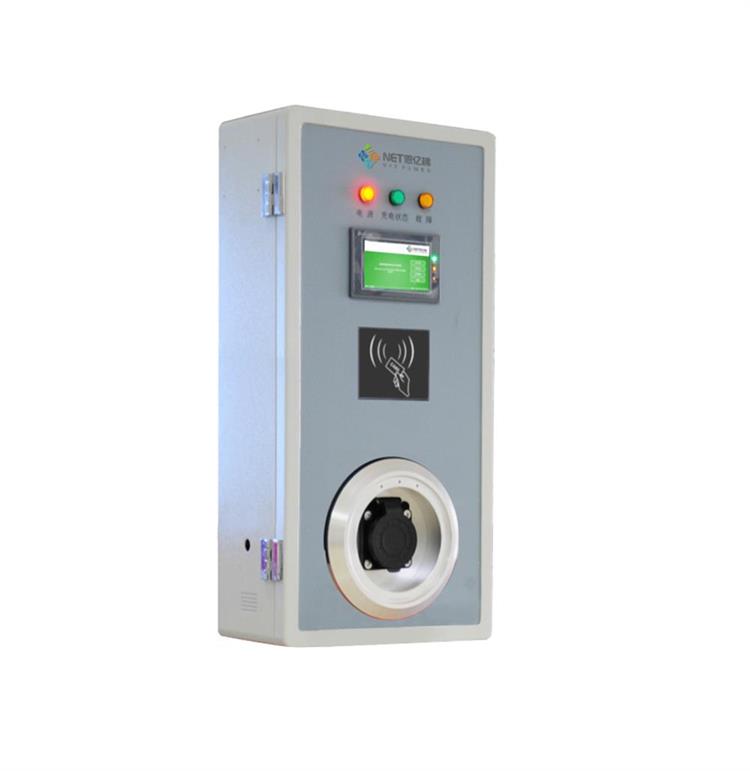

Dimension(D*W*H)mm(Wall mounted type)	620*320*206
Weight(kg)	≤50
IP rating	IP54



Packaging & Shipping



Standard export wooden box package
One unit per box



Our Services



Repair service: NET power Co.LTD provides free repair services for product within warranty.

Inspection services: Professional on-site inspection engineers shall conduct on-site inspection, exam equipment operation status, resolve failures that may arise, offer maintenance service.
