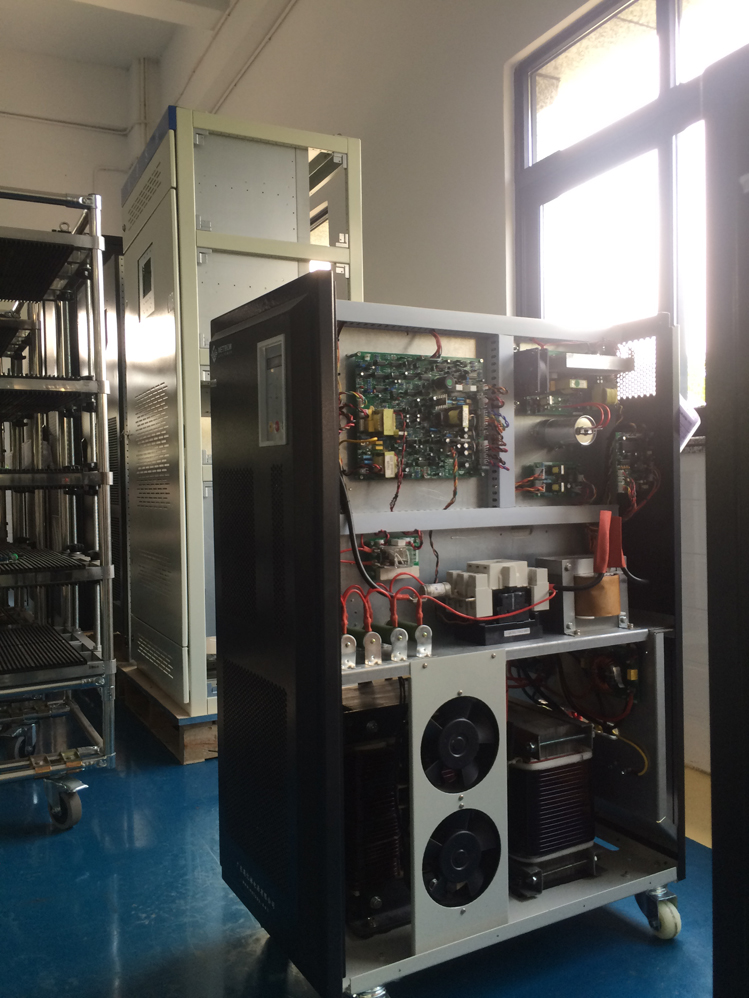

To bigger review, click picture here.
3 by 1 phase power station commissioning online ups 10kVA
- BrandNET OEM ODM
- TypeMT 10VA
3 by 1 phase power station commissioning online ups MT 06-15kVA
NET low frequency online ups guarantee medium network equipment run normally.
Isolation transformer ups 06kVA 10kVA 15kVA
System advantage
High reliable design: Double conversion online topology attains pure sine wave output with output frequency auto-detected, phase-locked, voltage-stabilized, noise-filtered, minimum interference from grid source. Safe-guarding loads comprehensively and perfectly. Advanced micro-processor and DSP tech controls ups operation reliably stably, enhancing ups efficiency. Input and output filters minimizes harmonic wave interference to grid source. Inverter output isolation transformer intensifies anti-interference performance. Comprehensive protection: over-load, short-circuit, over-temperature and pre-alarm on battery-low or under-voltage, EOD/End of discharge, battery over-charge, Inbuilt maintenance bypass switch transfers to manual bypass mode very convenient and reliable. Fit harsh condition well, with PCB boards storage in full-sealed case & conformal-coated. DC cold start enhances power availability with battery discharge to feed inverter, ups starts without ac mains input power.
Convenient LCD operation control and display interface: display and record ups status and parameters.
Excellent performance: Advanced PFC tech achieves high input power factor(approximate 1) no matter how input voltage fluctuates, load level varies. Ups can adapt to external generator(rating capacity 1.25 times of ups rating) with high frequency control circuit(frequency synchronized, noise-filtered, gradual, load power increased gradually)
Comprehensive monitor slots: RS232/RS485(standard),SNMP(option),battery test module(option). Intelligent battery test module inspects battery cells and reminds ups administrator of damaged battery with an alarm signal on LCD. And alarm also on over-voltage, under-voltage or voltage differs wide between blocks. CPU also control battery re-charge periodically on actual remaining capacity. IGBT balance-drive charge batteries and high frequency charge control.
Wide application: Power station, office automation, Post and communication, science research institute, medical, bank and LAN, etc.
TECHNICAL SPECIFICATION | |||
Rating capacity(kVA) Rated power (kW) | 6kVA | 10kVA | 15kVA |
4.8kW | 08kW | 12kW | |
AC INPUT/RECTIFIER INPUT | |||
Input phase/wire | 3Ph+N(GND) | ||
Nominal voltage | 380Vac(220) 400Vac(230) 415Vac(240) | ||
Voltage range | Nominal±25% | ||
Nominal frequency | 50Hz(60) | ||
Frequency range | 50Hz±10% (60) | ||
THDi | <5%(50% load-level) <4%(100% load-level) | ||
Input power factor | >0.99 | ||
BYPASS INPUT | |||
Input phase/wire | 1Ph+N(GND) | ||
Voltage range | Nominal±15% | ||
Frequency range | 50Hz±5% (60) | ||
Transfer time | 0ms(Normal-mode<inverter> to Bypass-mode) | ||
BATTERY | |||
Nominal DC-volt/Block/Cell | 192Vdc/16block/96Cell | ||
Average charge Volt | 218Vdc | ||
EOD/End of Discharge | 216Vdc | ||
Charge current | 3-25A(as per customer's demand) | ||
UPS OUTPUT | |||
Output phase/wire | 1Ph+N(GND) | ||
Voltage precision | Nominal±1% (Static load) | ||
Frequency stabilization | Ac-mode auto-detection(50Hz±5%),Battery-mode: 50Hz±0.05% | ||
Output power factor | 0.8 lagging | ||
Wave Form | Pure sine wave | ||
THDv | <3%(linear load), <5%( non linear load) | ||
Transient volt on transient load | 5%(load-level 0-100% transient variation) | ||
Transient recovery time | <10ms(±5%) | ||
Volt unbalance | <3%(unbalance-load), <±1%(balance load) | ||
Over-load | 101%-125%: 10 minutes, 150%: 200ms | ||
Efficiency | 93%(Normal-mode), 96%(ECO) | ||
Communication slots | RS232/RS485, optional SNMP, Battery test module | ||
1+1, N+X parallel redundant | Max 8 units parallel configuration, optional parallel cards | ||
IP Class | IP-21 | ||
PHYSICAL | |||
Work temperature | 0-40℃ | ||
Relative humidity | 0-90% non condense | ||
Noise(1m) | 48-55dB | ||
Dimension(W*D*H)mm | 300*610*880 | ||
N.Weight(kg) | 120 | 160 | 200 |
