6GFMJ12V-38Ah - 200Ah GEL Battery
- BrandNET OEM
- Type6GFMJ2V-100Ah - 3000Ah
VRLA Maintenance-free battery(GEL)GFMJ(12V) & (2V)
NET brand SLA Battery for UPS internal or external configuration.
Battery solution advantage
GEL battery manufactures electrolyte with imported silica gel material no flow and no separation
Imported battery separation board with large aperture diameter, but low resistance
Battery poles with plastic-coating anti-corrosion well and long service time
Rating capacity(C10) 38-2000Ah
Designed float-charge longer: 12V(15 years), 2V(20 years) on condition 25℃+5℃
Battery cycle-life: 2950 cycles(12V), 3500 cycles(2V)
Self-discharge rate<2% per month
High charge efficiency and energy-saving
Work-temperature -20℃~ 55℃
Storage lifespan: 2 years later, full charged Gel battery’s rating capacity lower to 50% on 25℃ storage temperature, rating capacity recovers to100% after fully charged again
Deep-discharge ability very good that it is permitted to connect to load when deep discharge 100%, and re-charge to rating capacity after 4-weeks.\
Wide applied to telecom base, exchange site, power station, military network transmission bases, data-transmission, TV signal transmission equipment backup power, EPS/UPS, Wind-turbine, solar system, wind and wind complementary generators.

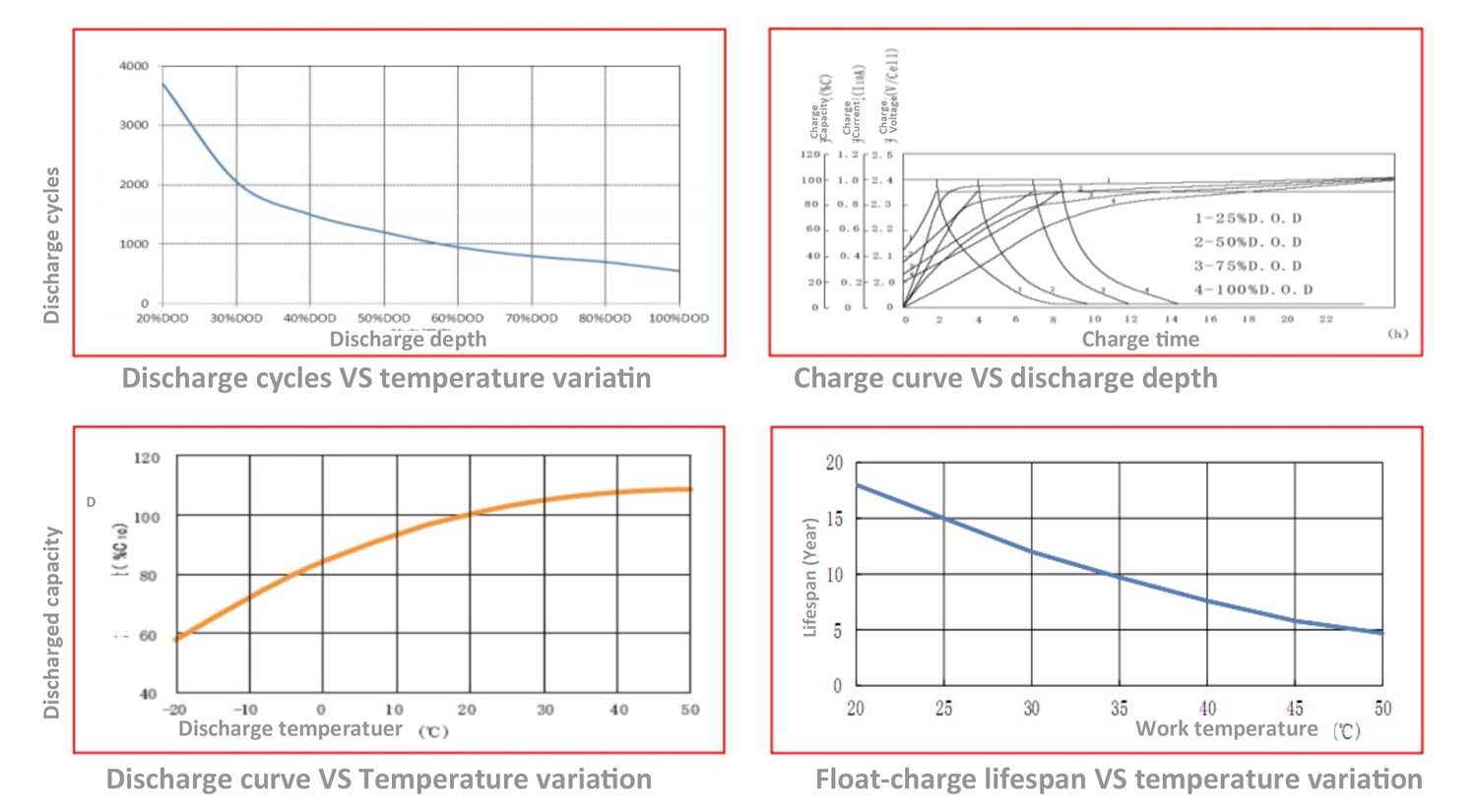

Charge & discharge curve
Specification
|
NET Power Model |
Rated voltage(V) |
Rated capacity(Ah) |
Length(mm) |
Width(mm) |
Height(mm) |
Total height |
Weight(kg) |
Short-circuit Current(A) |
Internal resistance |
||||
|
6GFMJ12-38 |
12 |
38 |
198 |
166 |
170 |
170 |
14.0 |
1010 |
8.50 |
||||
|
6GFMJ12-50 |
12 |
50 |
276 |
174 |
169 |
198 |
21.0 |
1525 |
7.64 |
||||
|
6GFMJ12-65 |
12 |
65 |
310 |
174 |
209 |
236 |
30.0 |
1540 |
7.35 |
||||
|
6GFMJ12-100 |
12 |
100 |
513 |
163 |
218 |
228 |
44.0 |
2950 |
3.91 |
||||
|
6GFMJ12-120 |
12 |
120 |
513 |
296.5 |
218 |
228 |
52.3 |
2980 |
3.86 |
||||
|
6GFMJ12-150 |
12 |
150 |
513 |
232 |
218 |
228 |
63.8 |
3020 |
3.65 |
||||
|
6GFMJ12-200 |
12 |
200 |
513 |
296.5 |
218 |
228 |
82.8 |
3050 |
3.20 |
||||
|
6GFMJ2-200 |
2 |
200 |
171 |
107 |
334 |
344 |
14.8 |
2800 |
0.68 |
||||
|
6GFMJ2-300 |
2 |
200 |
171 |
151 |
334 |
344 |
21.3 |
3600 |
0.54 |
||||
|
6GFMJ2-400 |
2 |
400 |
211 |
175 |
334 |
344 |
30.0 |
4350 |
0.45 |
||||
|
6GFMJ2-500 |
2 |
500 |
243 |
174 |
334 |
344 |
35.5 |
5020 |
0.39 |
||||
|
6GFMJ2-600 |
2 |
600 |
302 |
177 |
334 |
344 |
44.0 |
5860 |
0.33 |
||||
|
6GFMJ2-800 |
2 |
800 |
410 |
175 |
334 |
344 |
60.0 |
6900 |
0.28 |
||||
|
6GFMJ2-1000 |
2 |
1000 |
478 |
175 |
334 |
344 |
71.0 |
8000 |
0.24 |
||||
|
6GFMJ2-1200 |
2 |
1200 |
346 |
310 |
335 |
357 |
85.5 |
9600 |
0.165 |
||||
|
6GFMJ2-1500 |
2 |
1500 |
401 |
351 |
340 |
350 |
107 |
12000 |
0.184 |
||||
|
6GFMJ2-2000 |
2 |
2000 |
490 |
350 |
340 |
350 |
140 |
16000 |
0.12 |
||||
